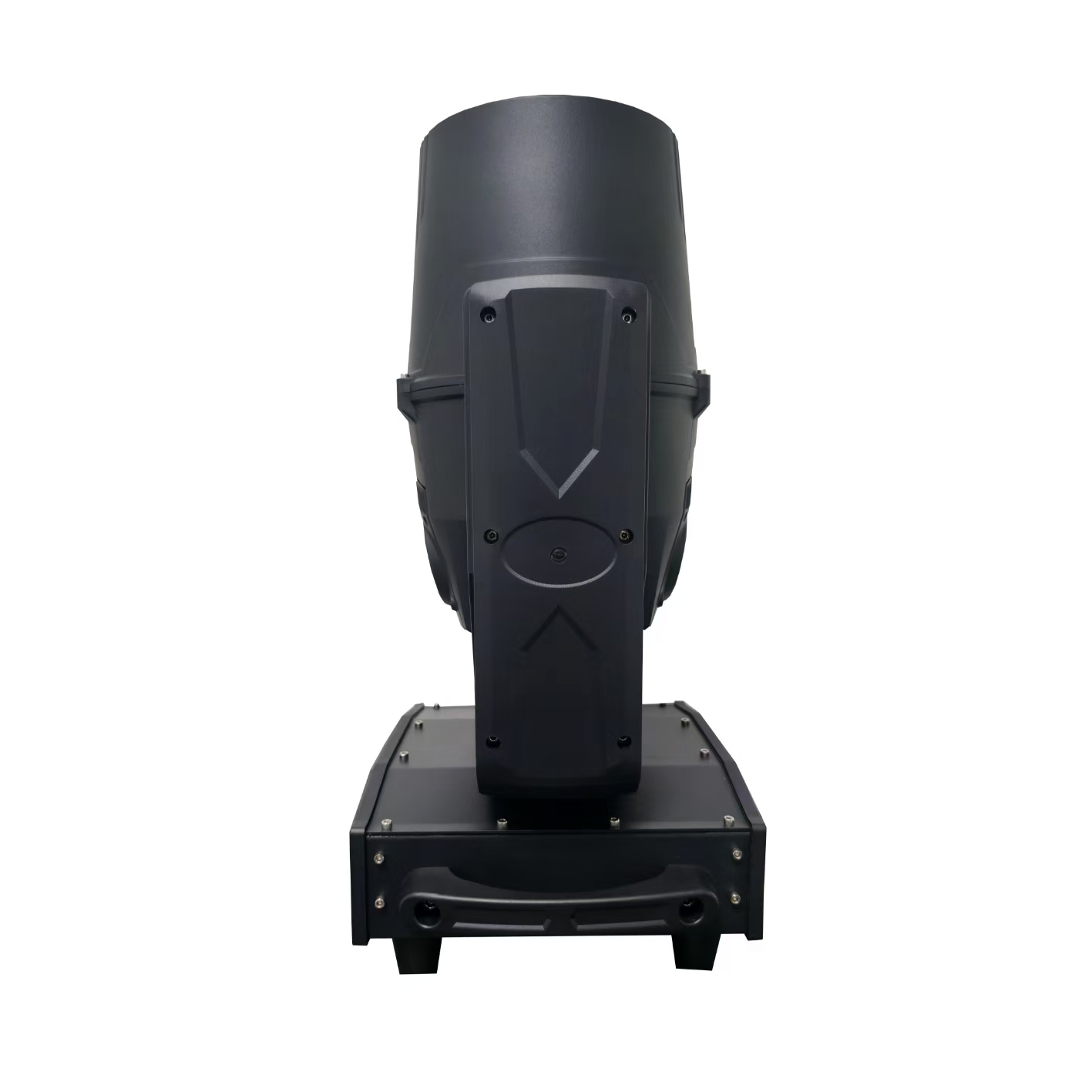

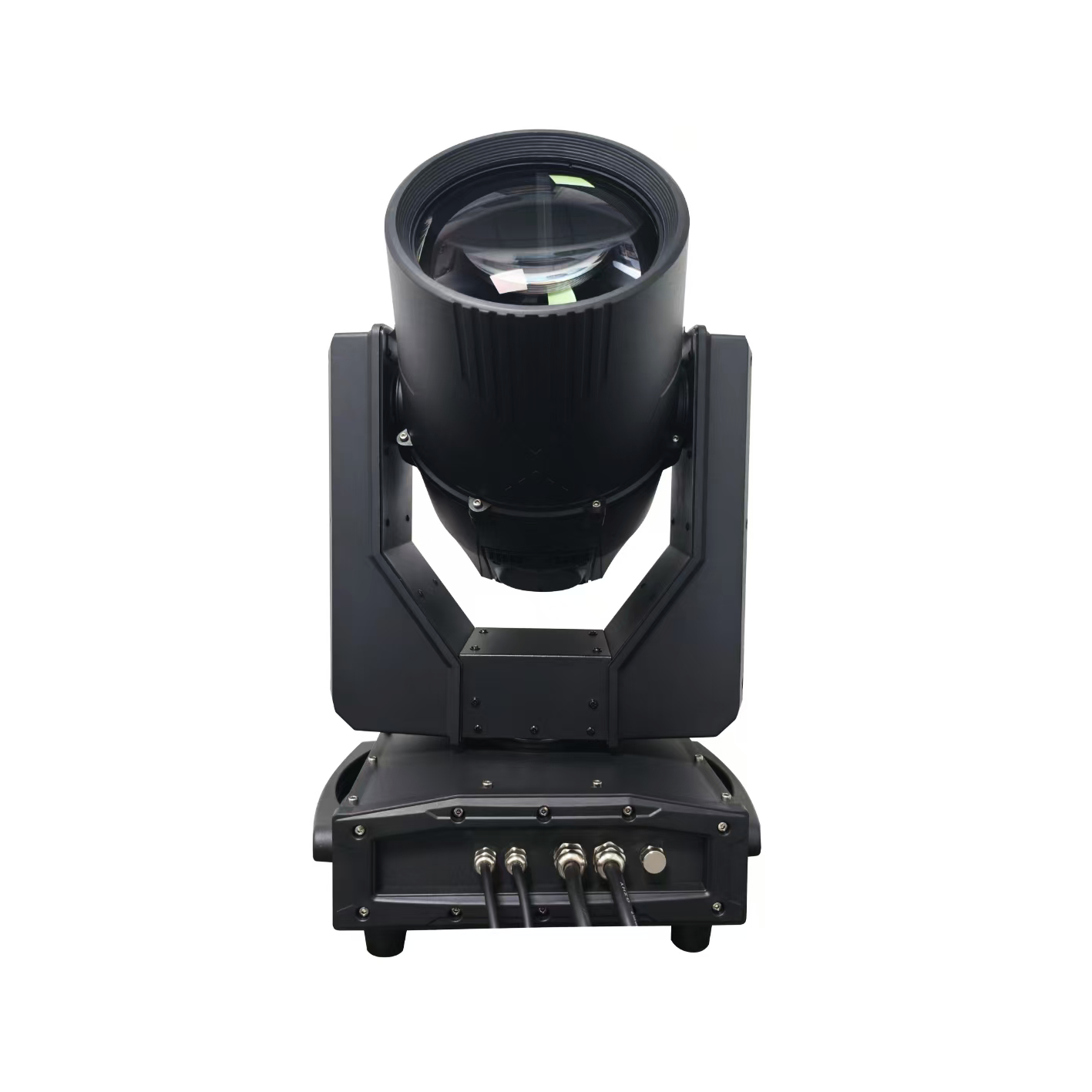

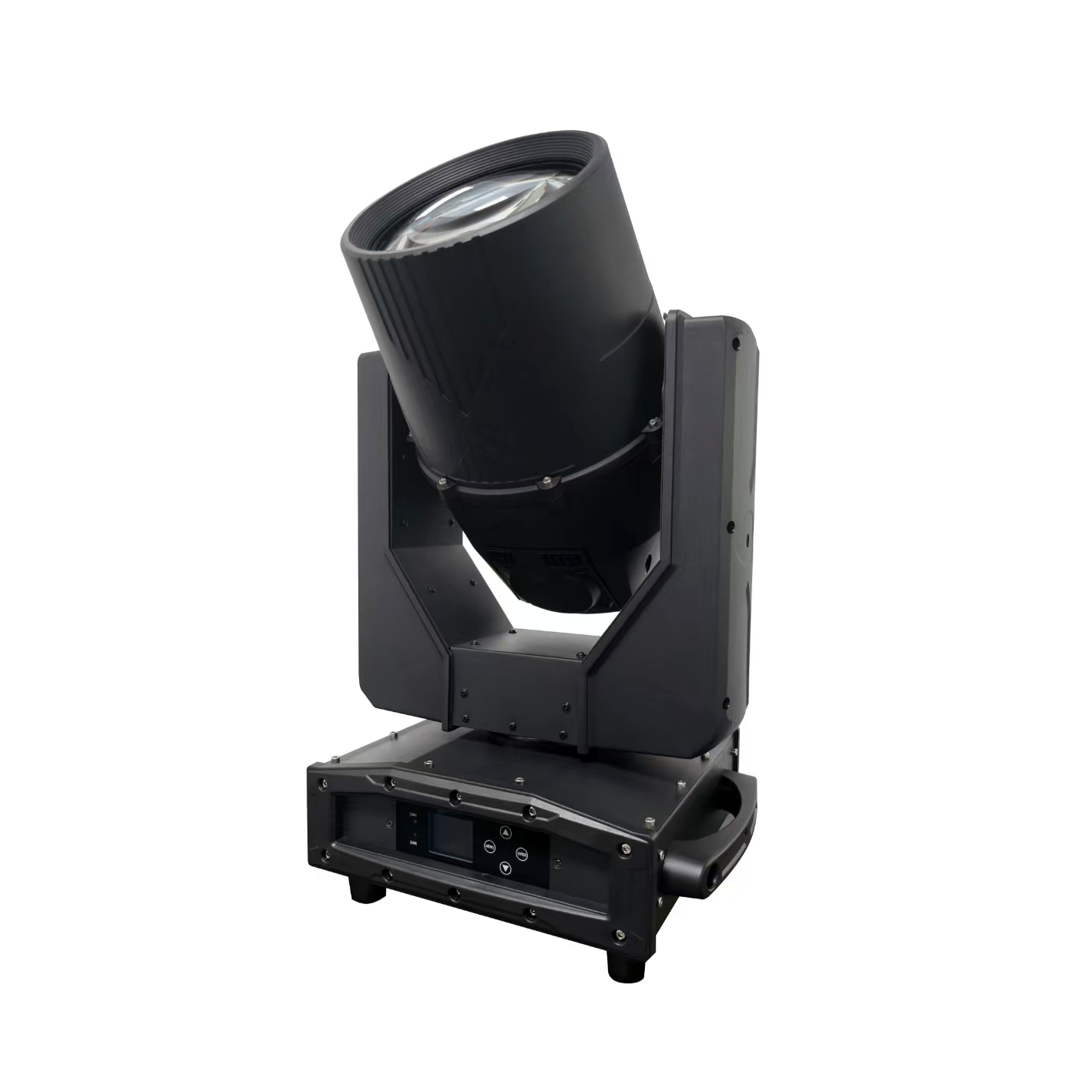

Moving head beam 380W IP65

Light source: 380w Osram

Rated life: 1500 hours

Color temperature: 7500K

Focus adjustment: Using high-precision glass lens, electronic linear high-definition focus

Angle: 1.7°

Electrical parameters

Input voltage: AC 100V-240V 50/60Hz

Rated power: 500W

Signal interface: 3-pin XLR waterproof signal socket input/output

Power interface: waterproof power socket

 Effect

Horizontal/vertical: horizontal scanning angle 540°, vertical scanning angle 270°, automatic return correction and 16-bit precision fine function

Strobe: 1-20Hz fast strobe per second, with pulse strobe, synchronous and asynchronous strobe effects

Dimming: smooth dimming without flicker

Prism: 8 prism, 8+16 prism

Color wheel: Color wheel 14+Open

Fixed pattern plate: 17+Open

Focus adjustment: 0-100% linear electric focus

Physical/Installation Characteristics

Net weight: 20Kg

Protection level: IP65

Overall dimensions: 553*294*344mm

The fixtures are made of high-strength die-cast aluminum + engineering plastics, anti-UV treatment, high temperature resistance, and anti-aging.

Control channel: Standard 14 channels/Extended 18 channels

Signal protocol: DMX512

Horizontal and vertical use of non-contact magnetic rotary encoder positioning system

Menu display: LCD display, Chinese and English languages can be switched.

Color Wheels  Rainbow Wheel   Heat insulation   Fixed Gobo Wheel
